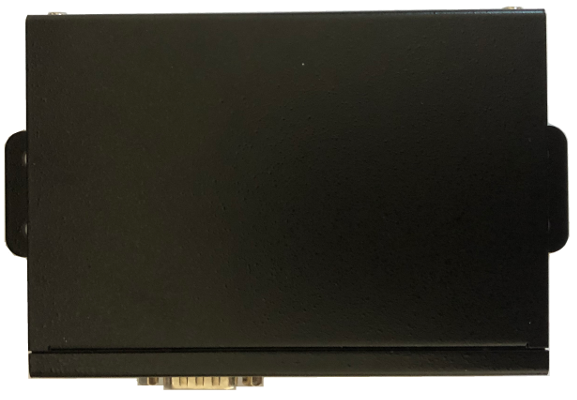

Ethernet to Serail Converter
Convert Ethernet to serial
GL-NU485 串列設備轉換器，可讓您的串列設備立即連網。並具備友善的使用者介面，給您穩定可靠的串列連網解決方案。
Ethernet Interface
| Number of Ports | 1 |
| Speed | 10/100 Mbps |
| Connector | 8-pin RJ45 |
Serial Interface
| Number of Ports | 1 |
| Serial Standards | RS-232 RS-485 |
| Connector | RS-232 DB9 male RS-485 2 x plug-in terminal block(#14~22 AWG) |
Serial Communication
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | None, Even, Odd, Space, Mark |
| Flow Control | XON/XOFF |
| Baudrate | 50 bps ~ 230400 bps |
Serial Signals
| RS-232 | TxD, TxD, GND |
| RS-485 | Tx+, Tx- |
| Parity | None, Even, Odd, Space, Mark |
